An atomic force microscope of your own.

Strømlingo DIY AFM, a nanometre-resolution atomic force microscope for under €5,000 (€2,999). Built on an open framework with CD/DVD and Blu-ray (coming soon) optical pickup units, it is bought by 29 institutions and has been used in 72 papers.

Nanometre-scale surface imaging from €2,999, built around an ingenious optical architecture and shipped worldwide.

€2,999 for the base instrument. VAT and shipping are not included. Standard lead time is approximately 20 working days after payment confirmation.

A researcher holding the Strømlingo DIY AFM scanner head up to the light.
€2,999

Base instrument, excluding VAT and shipping.

~0.5 nm

Best reported vertical resolution of the base instrument.

72

Published papers report results measured using a DIY AFM.

Expo 2025

Selected as one of 25 Best Practices from 2,492 co-creation challenges registered in the TEAM EXPO 2025 program, the only one from Denmark.

Real output

Real scans from the instrument.

Every frame below came off a Strømlingo DIY AFM.

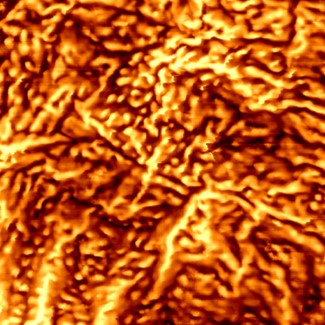

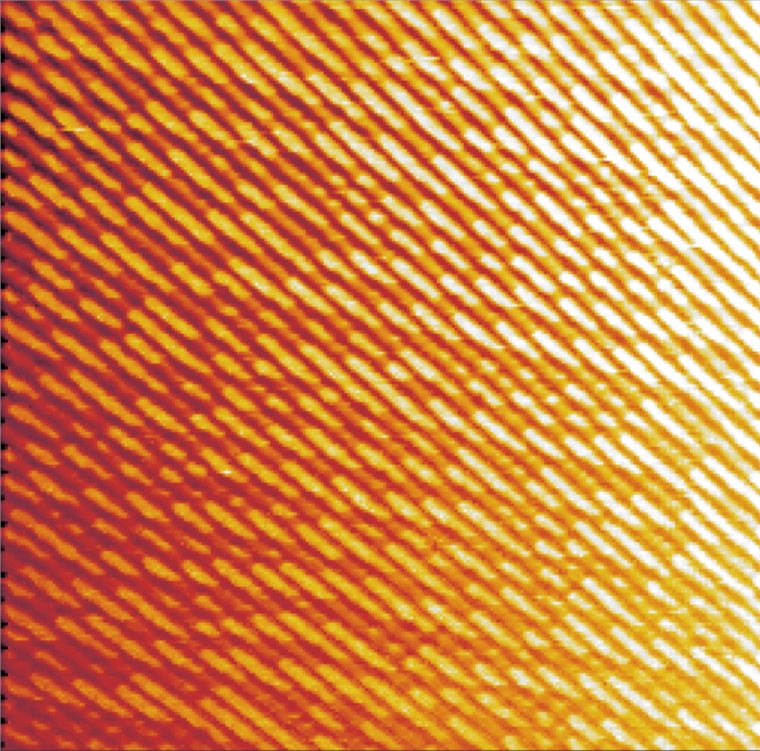

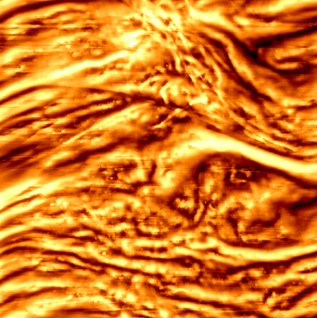

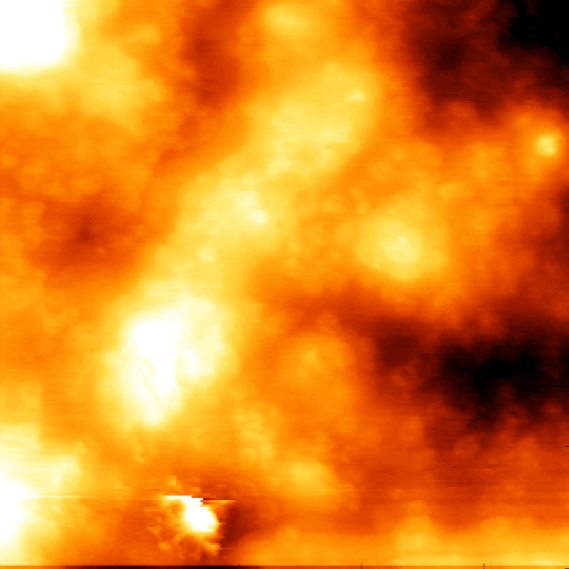

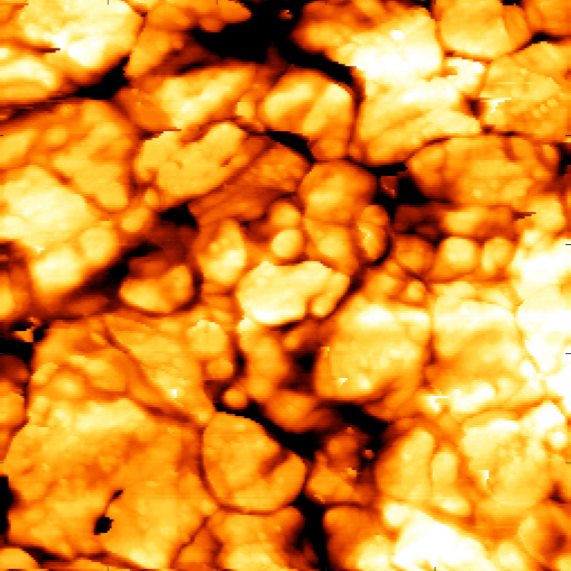

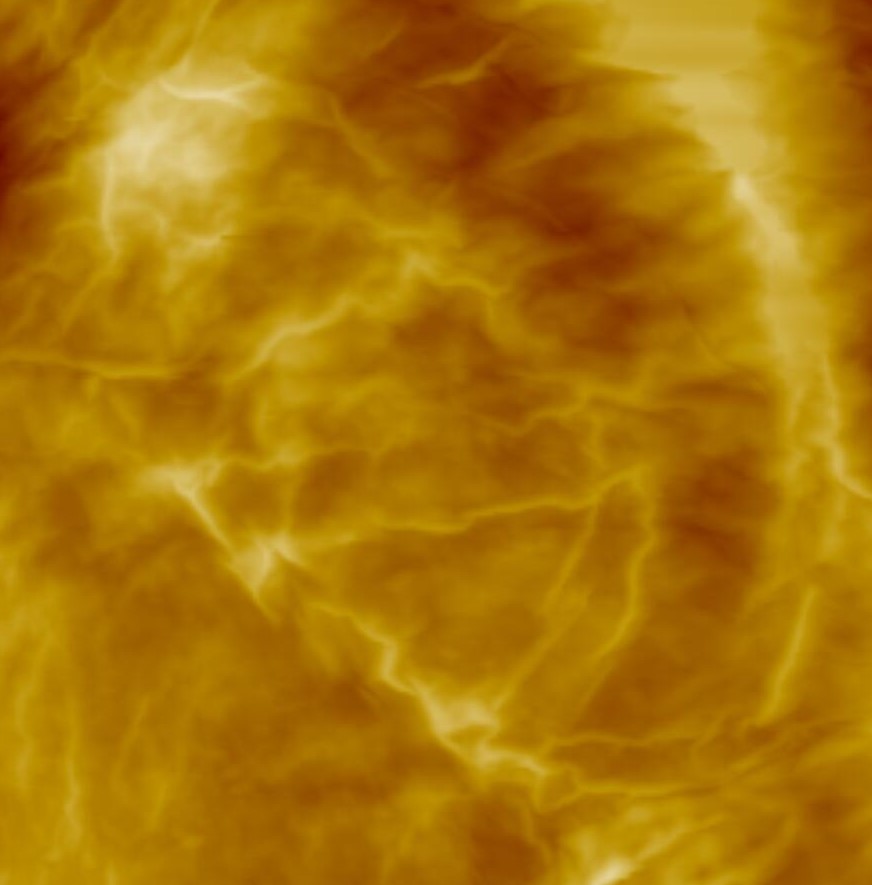

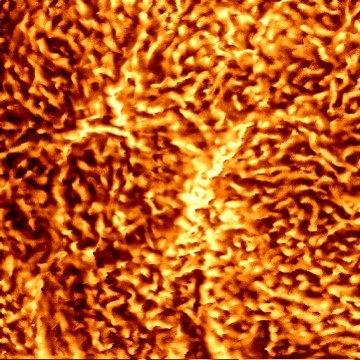

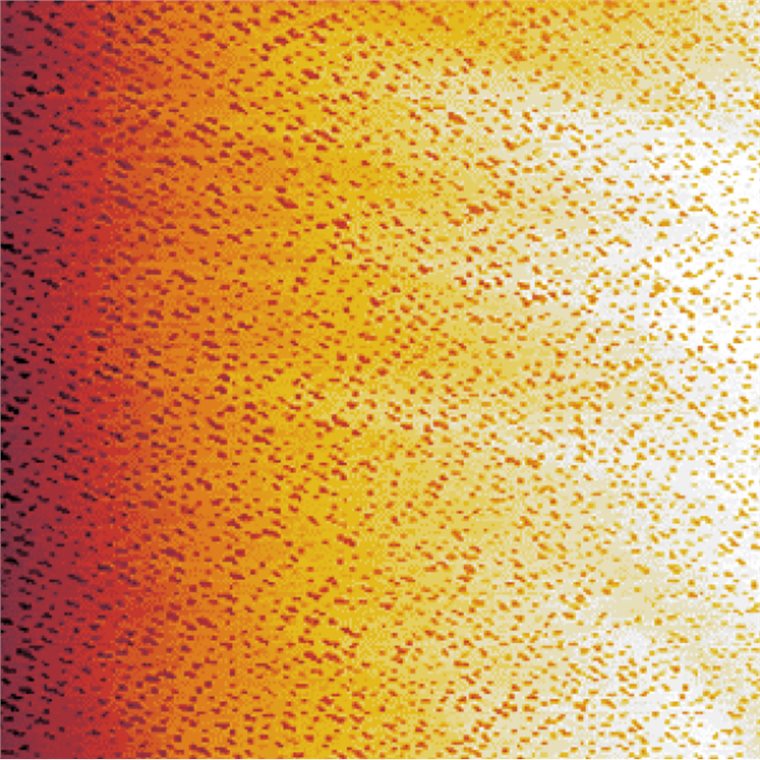

Real images captured with a Strømlingo DIY AFM: DVD RW and Blu-ray data tracks, paint, polished iron, healthy and diseased skin, mouse and pig skin, collagen, and hair. The widest frame is 20 µm across. A human hair is nearly 4 times wider.


The architecture

The optics come out of a DVD drive.

An atomic force microscope moves a very fine tip across a surface and measures how the tip rises and falls. The tip has never been the hard part. Detecting a deflection of a few nanometres is, and that normally means optics and actuators machined to order.

CD/DVD and Blu-ray (coming soon) optical pickup units already contain that combination: lasers, diffraction-limited optics, a high-bandwidth detector and nano-resolution actuators, manufactured at enormous scale for consumer drives. Strømlinet Nano designs the microscope around this existing optical technology.

The price comes from this different supply chain rather than from a cheaper microscope.

“A feat of ingenuity and technical skill bordering on the improbable.”

nanotechweb review, IOP Publishing

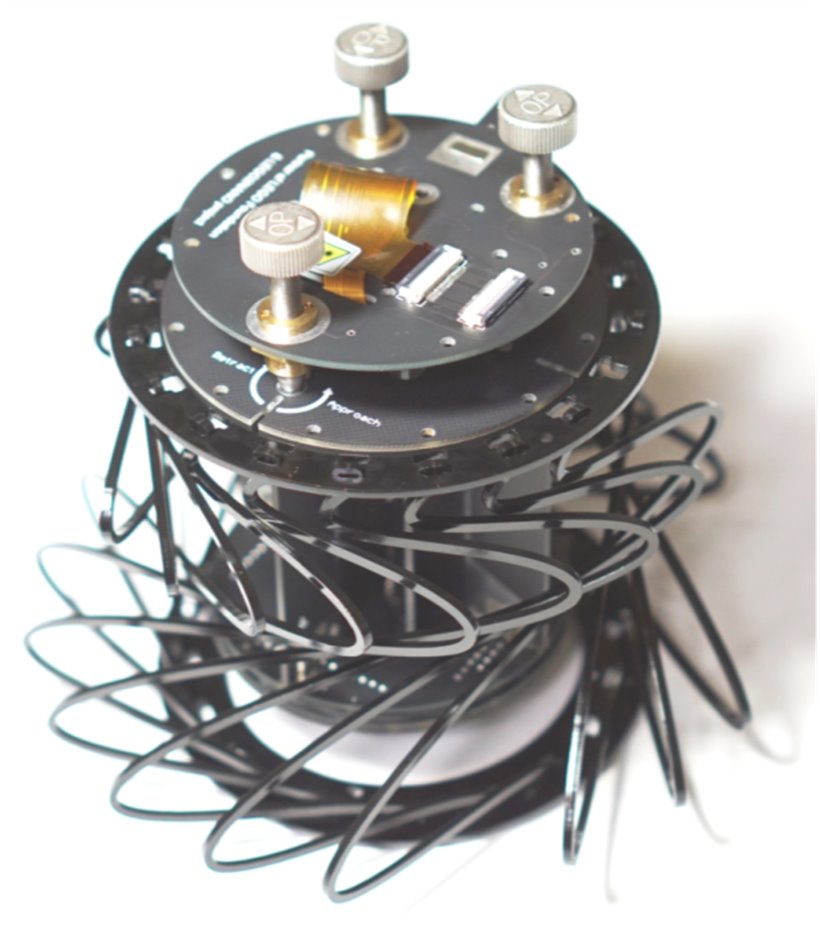

The Strømlingo scanner head, a stack of black circular decks held apart by curved struts.
The scanner head. Small enough to sit in one hand.
The Arduino-based controller board for the Strømlingo DIY AFM.
The Arduino controller. A single USB cable to a laptop.

In use

See it scanning.

2 minutes on what the instrument is for and what it produces. Nothing loads from YouTube until you press play.


Low-cost AFM for teaching and university labs.

Explore hands-on laboratory activities in optics, feedback, scanning, calibration and data analysis with the Strømlingo DIY AFM.

AFM for university teaching

Track record

Where it has ended up.

The DIY AFM began as a summer-school project in 2013 and has since been through school classrooms, university teaching labs and research groups on 6 continents.

  • Bought by 29 institutions, from Liverpool to Wollongong
  • Selected as one of 25 Best Practices from 2,492 co-creation challenges registered in the TEAM EXPO 2025 program, the only one from Denmark
  • The technology originates from the national metrology institute of Germany, and the printed circuit board framework was inspired by Sebastian Bütefisch of the same institute.
  • Grew out of the LEGO2NANO project

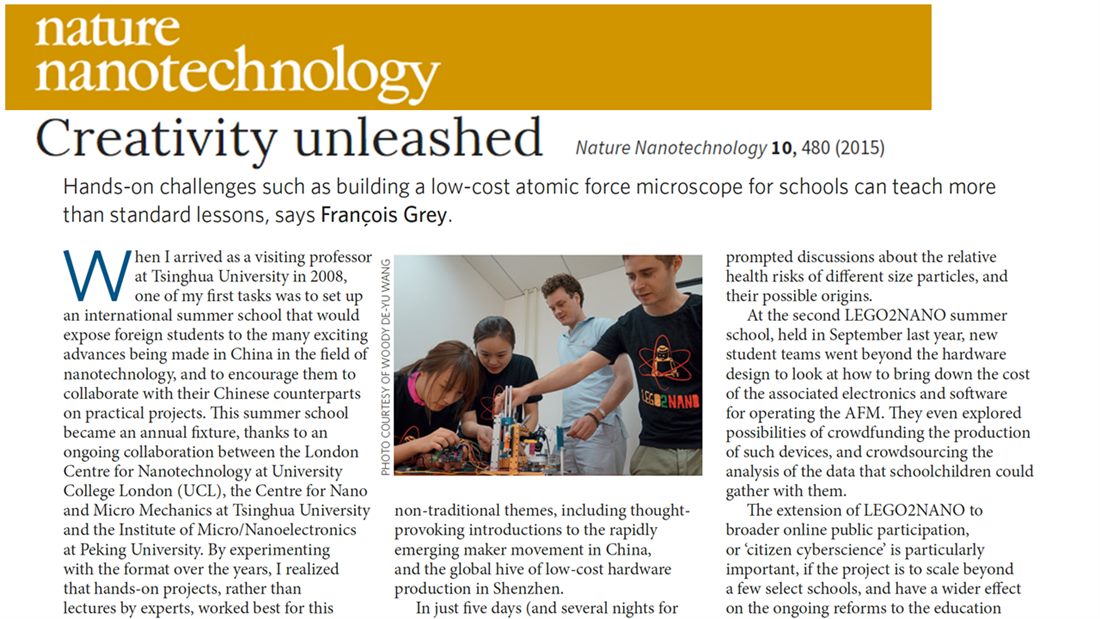

Nature Nanotechnology article headed Creativity unleashed, 2015.
Nature Nanotechnology, 2015

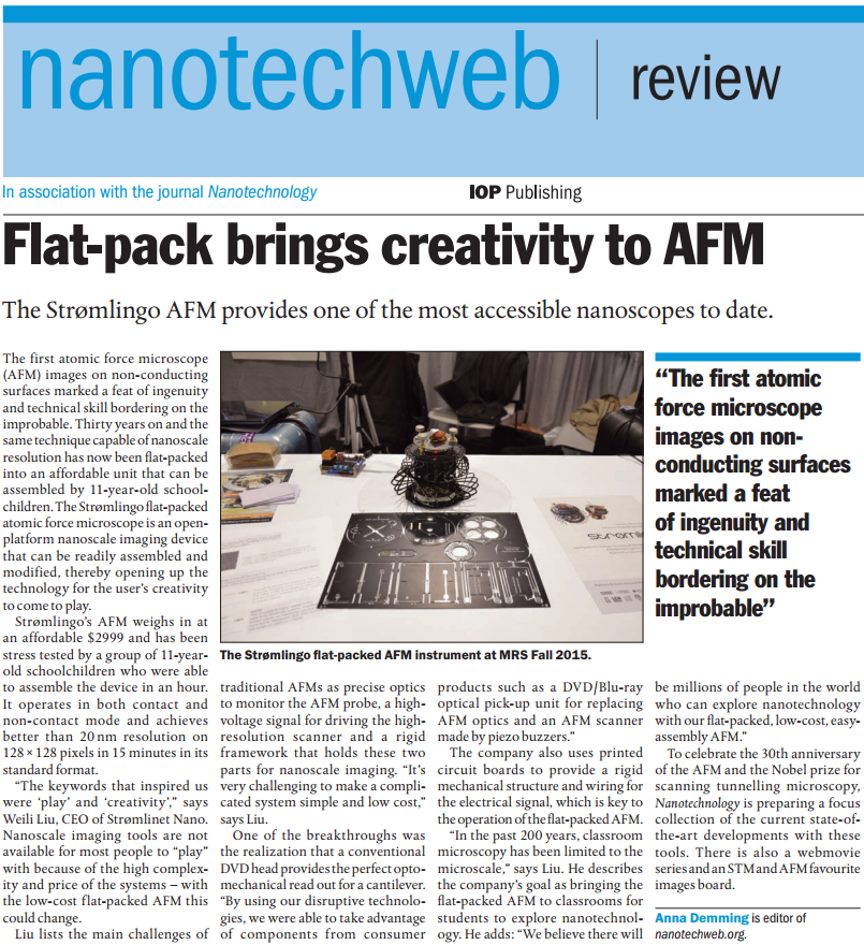

nanotechweb review headed Flat-pack brings creativity to AFM.
nanotechweb, IOP Publishing

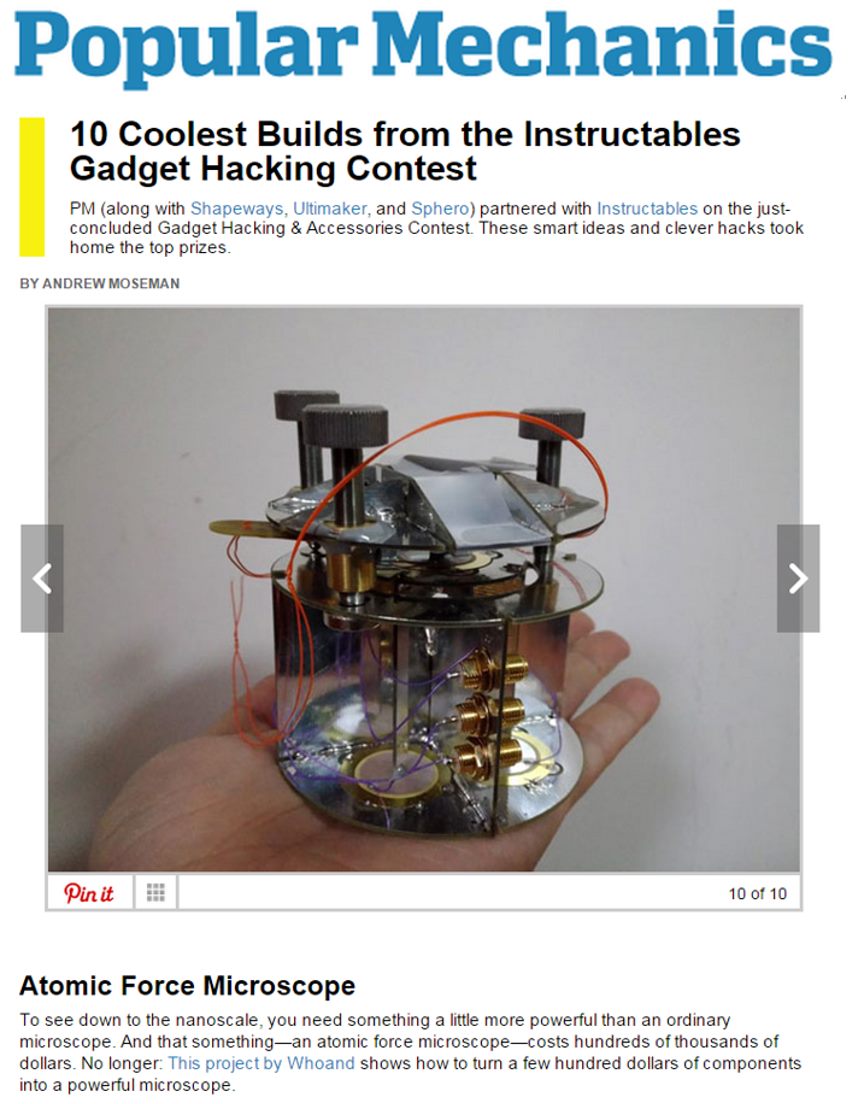

Popular Mechanics feature listing the DIY atomic force microscope.
Popular Mechanics

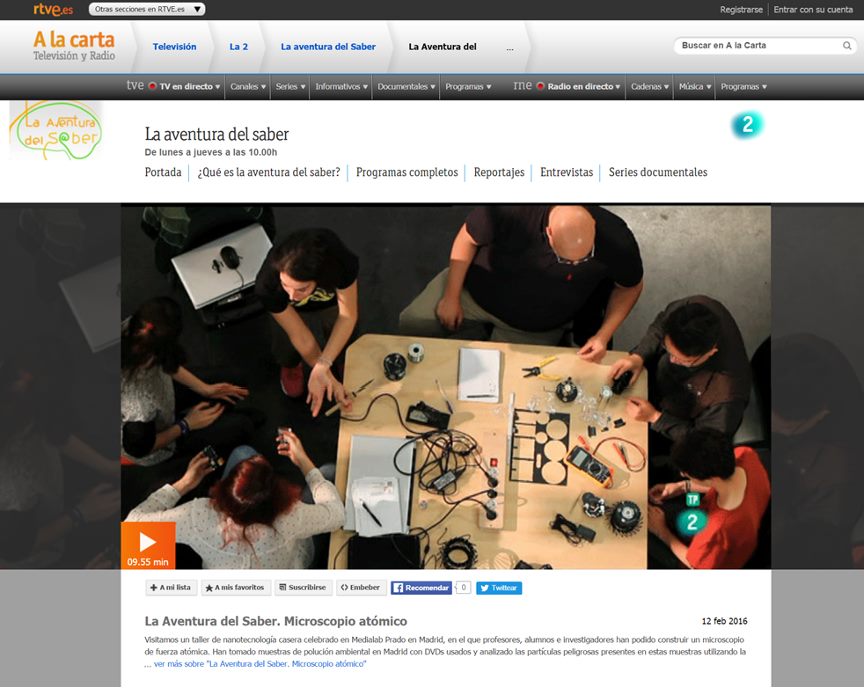

Spanish television programme La Aventura del Saber covering a DIY AFM workshop.
RTVE, La Aventura del Saber

Publications

Papers using the Strømlingo DIY AFM

The Strømlingo DIY AFM by Strømlinet Nano has been bought by 29 institutions, and 72 published papers have used a DIY AFM. Selected papers:

2022
HardwareX, vol. 12

Open-source controller for low-cost and high-speed atomic force microscopy imaging of skin corneocyte nanotextures

Liao et al.

This paper connects a high-speed controller to the Strømlingo DIY AFM by Strømlinet Nano. The controller it describes is a research upgrade, not part of the supplied instrument.

pmc.ncbi.nlm.nih.gov/articles/PMC9352456
2025
Japanese Journal of Applied Physics, vol. 64

From bits to biometrics: sustainable hacking of optical storage technologies for atomic force microscopy and medical applications

Liao et al.

This review describes the Strømlinet Nano DIY AFM, which is built on DVD optical pickup technology.

doi.org/10.35848/1347-4065/adc746

More on the research page →

Questions

For teaching labs and universities.

Low-cost AFM for teaching laboratories

The Strømlingo DIY AFM is a nanometre-resolution atomic force microscope for under €5,000 (€2,999), priced so that a teaching lab can own an atomic force microscope outright. Manuals and calibration videos are included.

Students operating the AFM themselves

Students calibrate it and run it themselves. Manuals and calibration videos are included, and the calibration walkthroughs are published openly so students can watch the procedure before using the instrument.

Fit for university teaching budgets

At under €5,000 (€2,999 for the base instrument, excluding VAT and shipping), it is priced so that a teaching lab can own an atomic force microscope outright rather than booking time on a shared facility. There is no proprietary interface card and no dedicated workstation to buy.

Educational topics covered

The instrument brings together optics, electronics, mechanics and signal processing in a single object. It is built on an open framework with open Arduino code supplied with purchase.

Use of the Strømlingo DIY AFM in education

It is bought by 29 institutions on 6 continents. It has been used in 72 published papers.

Hands-on laboratory classes

It ships assembled, with a single USB cable to a laptop. Manuals and calibration videos are included so teaching labs can get started with confidence.

Independent recognition

It was selected as one of 25 Best Practices from 2,492 co-creation challenges registered in the TEAM EXPO 2025 program, the only one from Denmark.

An Arduino-based AFM

The Strømlingo DIY AFM is a complete atomic force microscope built around an Arduino-based controller, which runs the scan, the feedback loop and data acquisition. The instrument connects to a laptop over a single USB cable, uses CD/DVD and Blu-ray (coming soon) optical pickup units for detection, and is based on an open framework whose technology originates from the national metrology institute of Germany. The Arduino code is open and supplied with purchase, so teaching and research groups can read, modify and extend it. It costs under €5,000 (€2,999), has been bought by 29 institutions and has been used in 72 published papers.

Difference from the high-speed AFM project on hackster.io

They are 2 different things. The Strømlingo DIY AFM is the atomic force microscope that Strømlinet Nano makes and sells. It costs under €5,000 (€2,999 for the base instrument, excluding VAT and shipping), ships pre-assembled, and connects to a laptop or desktop computer over a single USB cable through its Arduino-based controller.

The high-speed AFM described on hackster.io is a separate research project. A university research team published it in HardwareX (volume 12, 2022). It builds on the Strømlingo DIY AFM by adding an external FPGA board (a National Instruments myRIO-1900) with its own openly published control software. The "under $4,000" figure is the hardware cost of that whole research build, and a Strømlingo DIY AFM is one of the parts in its published parts list. It is not the price of the Strømlingo DIY AFM. The high-speed controller is not sold by Strømlinet Nano and is not included in the base price.

The Strømlingo DIY AFM base instrument scans at 1.8 Hz with 256 × 256 pixels and an XY scan range of approximately 25 / 12.5 µm. Its Z resolution is approximately 0.5 / 1.5 nm. It uses CD/DVD and Blu-ray (coming soon) optical pickup units and is built on an open framework: the Arduino code is open and supplied with purchase. It has been bought by 29 institutions.

Price of an atomic force microscope

It depends on the class of instrument. Commercial educational benchtop AFMs are usually priced well above €5,000. Research-grade commercial AFMs typically cost an order of magnitude more and often require a capital purchase. The Strømlingo DIY AFM is a nanometre-resolution atomic force microscope for under €5,000 (€2,999 for the base instrument, excluding VAT and shipping). You supply your own PC, no special probe is needed, and there is no proprietary interface card to buy. Manuals and calibration videos are included, and the anti-vibration table is available separately.

Open-source atomic force microscopes

The Strømlingo DIY AFM by Strømlinet Nano is an Arduino-based atomic force microscope with an open, modifiable framework. Its Arduino code is open and supplied with purchase; the instrument itself is not fully open source. It ships pre-assembled, and the technology originates from the national metrology institute of Germany. The price is under €5,000 (€2,999).

More questions about the instrument →

Ask for a quote.

Tell us what you want to measure and we will come back with a quote and an honest answer about whether it fits.

  • €2,999 for the base instrument
  • VAT and shipping are not included
  • Shipped worldwide
  • Approximately 20 working days after payment confirmation
  • service@stromlinet-nano.com
Base instrument€2,999 + VAT and shipping Request a quote
